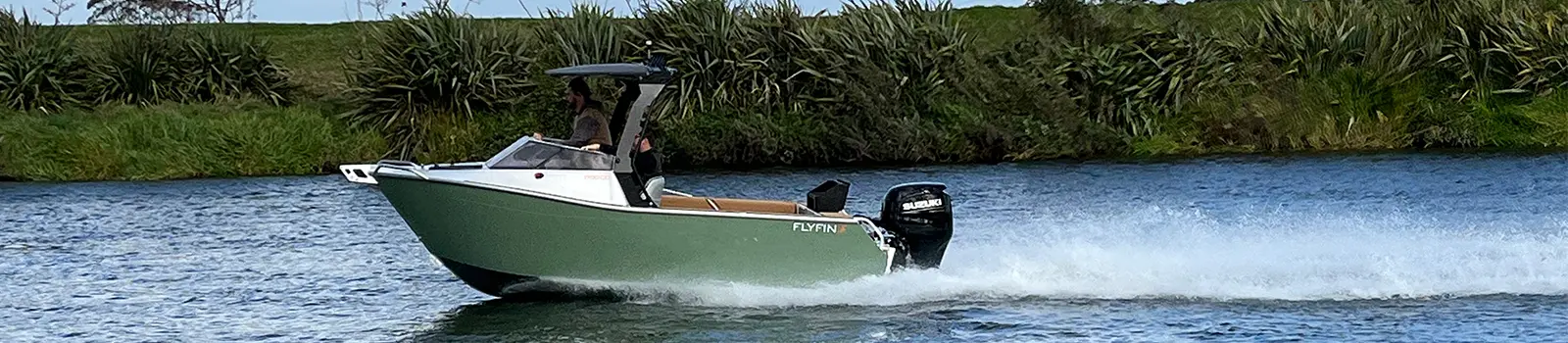

Cuddy Cabin

5.2M | 1700CD

Key Specifications

• Length – 5.2m
• Beam – 2.13m
• Internal Gunwale – 1.5m
• Dead rise – 14deg
• Recommended Power – 70-100HP
• Number of People – 4
• Max Load – 520kg
• Approx. Tow Weight – 950kg

Pair the Flyfin 1700 Cuddy Cabin with a Honda Marine outboard for the ultimate boating experience!

Standard features for 1700 models included in hull price

• 1100 LPH Automatic bilge pump
• 6-way backlit switch panel
• 6x Cup Holders
• 6 x full welded rod holders
• Acrylic screen 10mm tinted
• Black Acrylic Dash panel
• Bow Grab rail
• Built-in bow fairlead and roller
• Cule Bow Hatch (Cuddy Cabin)
• Easy drain cockpit floor
• Full buoyancy hull for large engine weight

• Fully welded aluminium rub rail
• Fully welded marine grade Hull plates
• In build internal shelves
• Large swim-platform
• LED Navigation lights
• None Feedback, steering
• Plastic aft battery compartment hatches
• Raised a battery compartment
• Sealed buoyancy compartments
• Tote tank compatible
• Transducer brackets

• U-Deck Pads
• Welded aluminium Cleats x 3
• Welded foot rests
• Welded stern grab rails
• Welded through hull pick up
• Welded tread-plate floor (option)
• Wired for L

1700 Specifications

• Number of people – 4
• Max load – 520kg
• Dry hull weight – 650kg*
• Hull thickness – 4mm
• Side thickness – 4mm

• Top side & cabin – 4mm
• Welded Structure – 4mm
• Under floor fuel – 80L
• Recommended – HP70-100
• Gunnel Height – 700mm
• Approx. tow weight – 950kg*
