Highfield Roll Up Boats

Dare to Explore

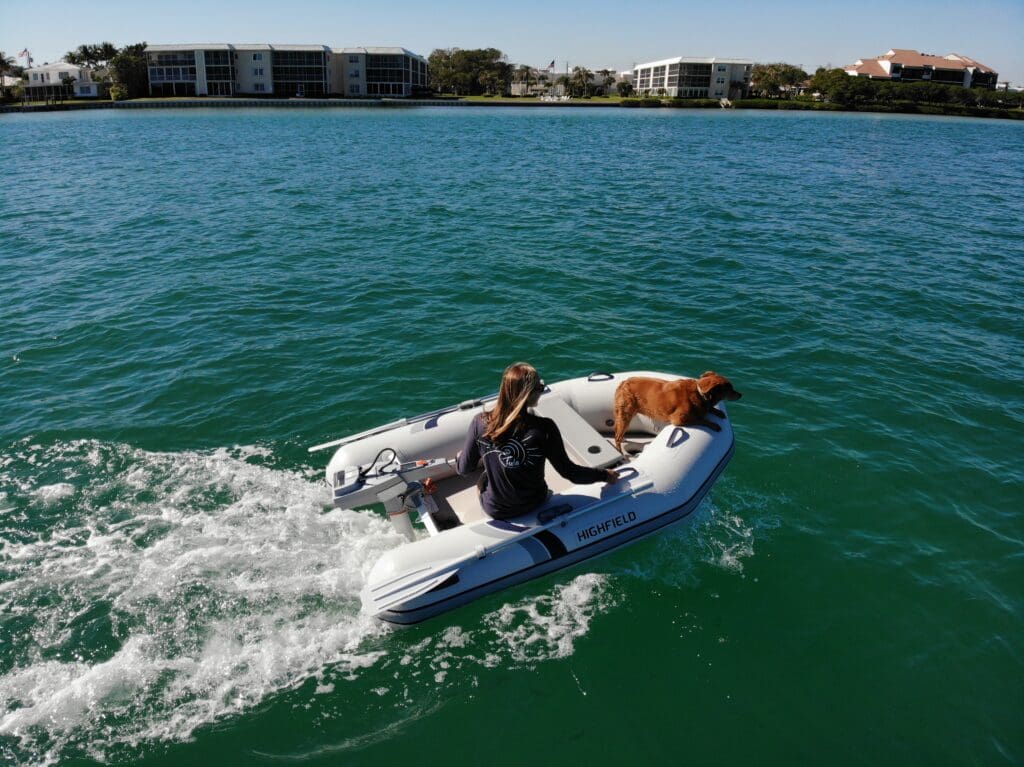

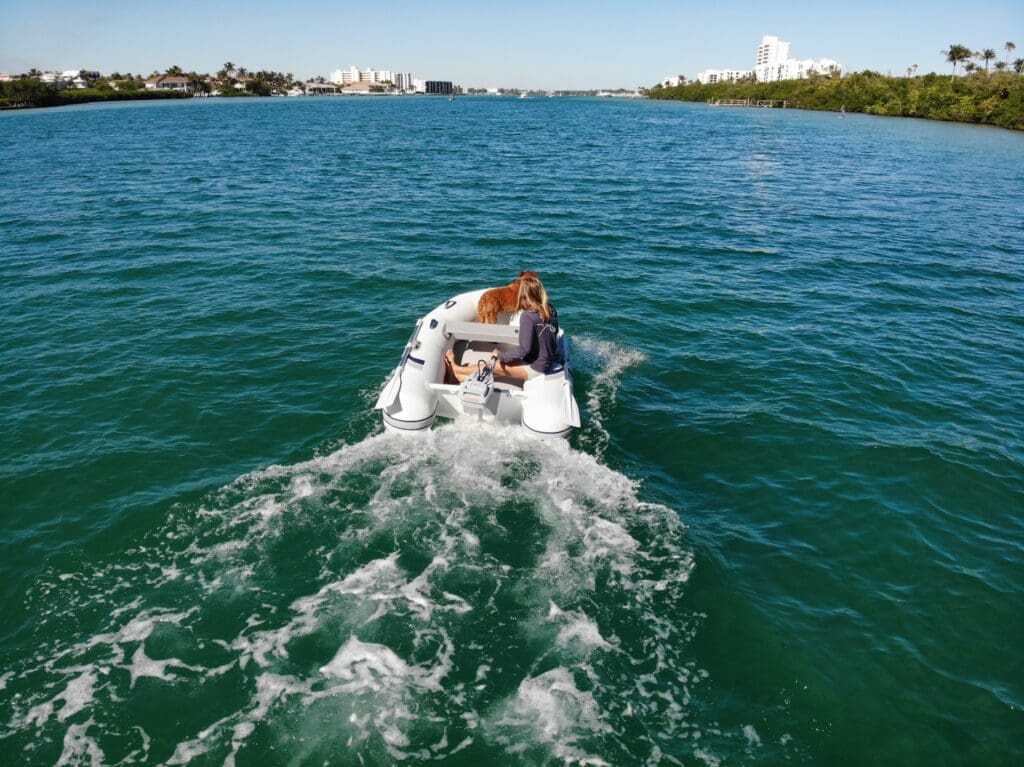

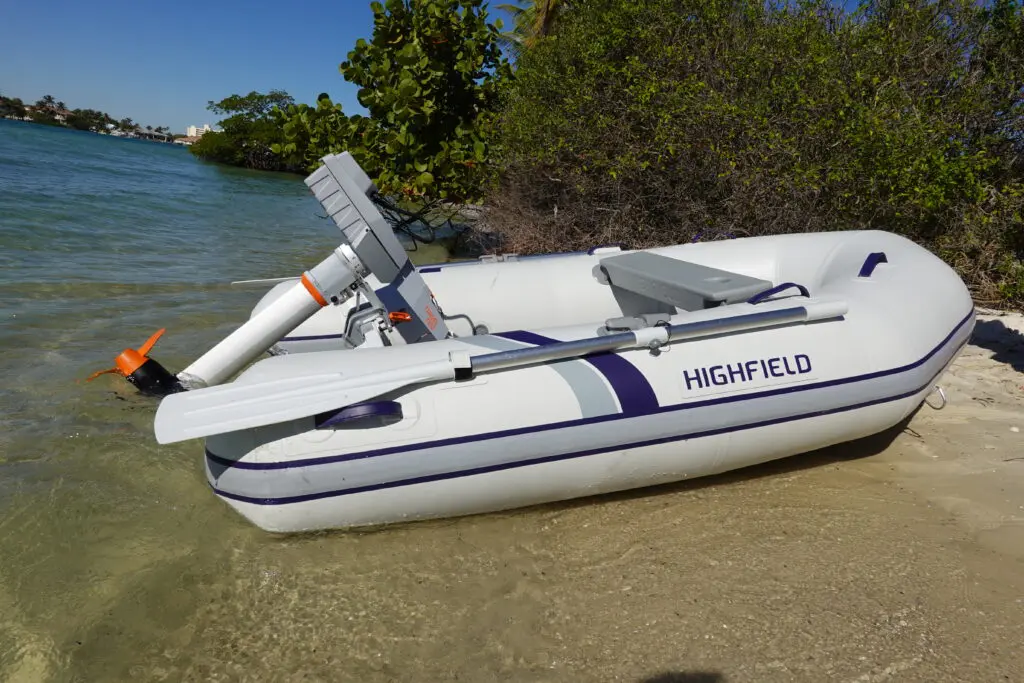

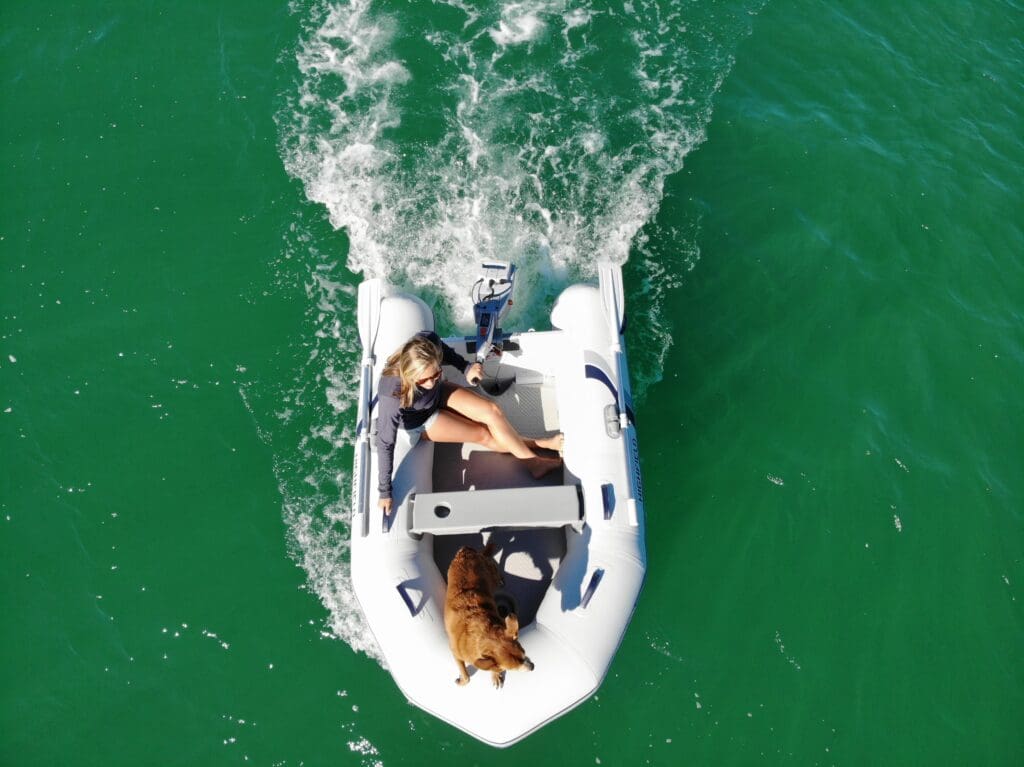

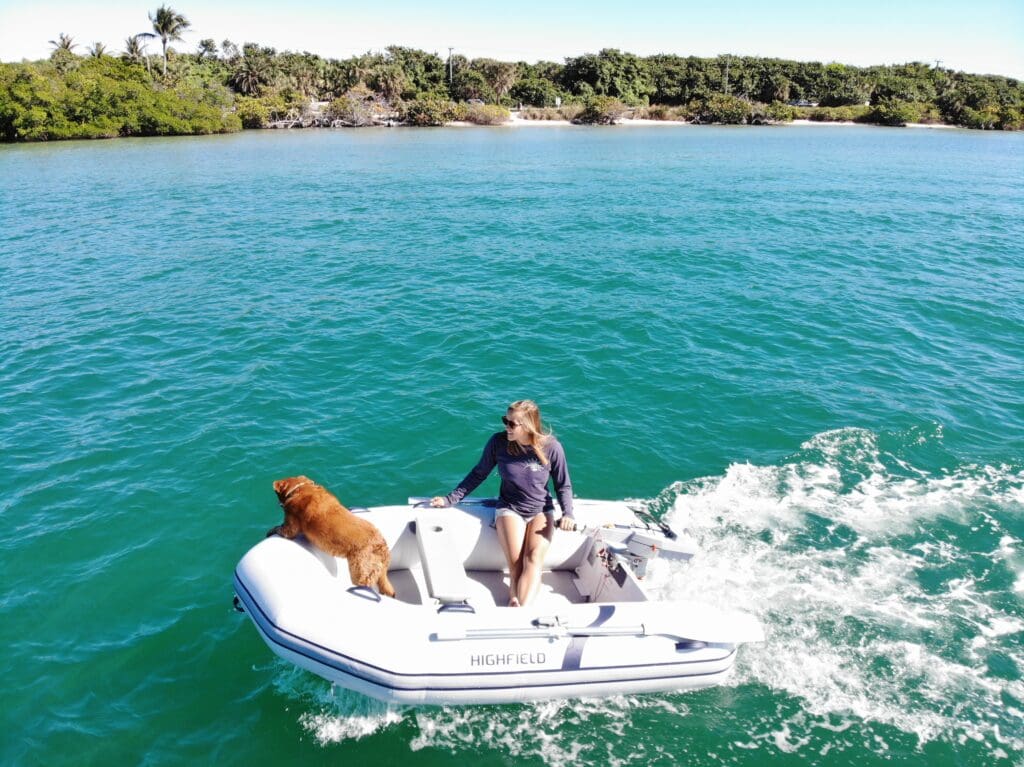

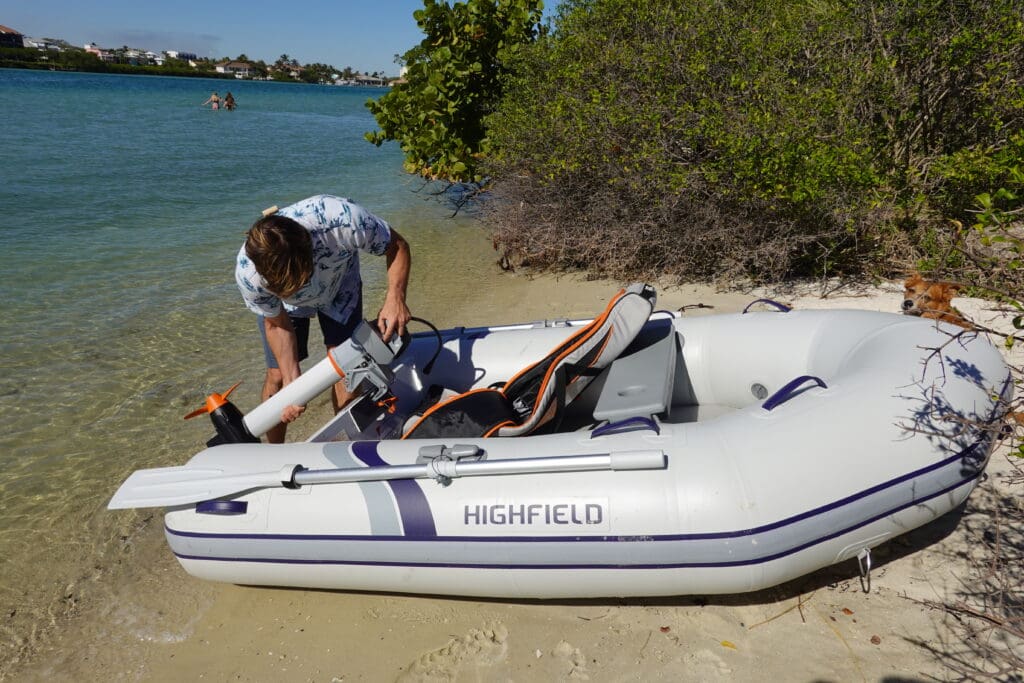

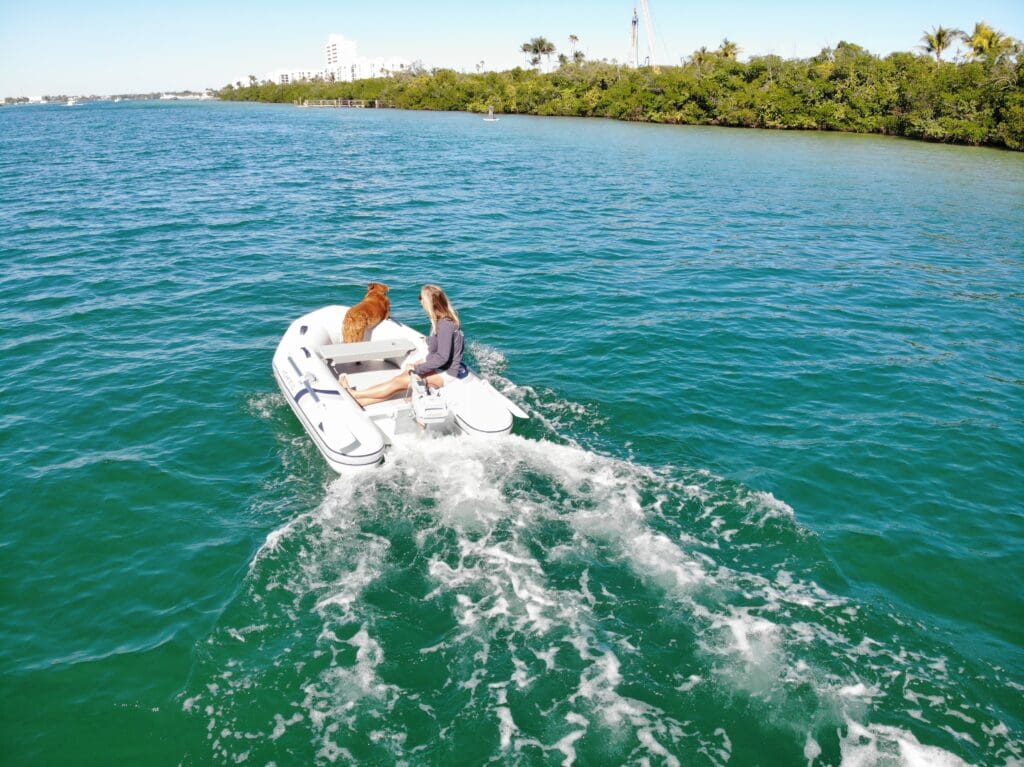

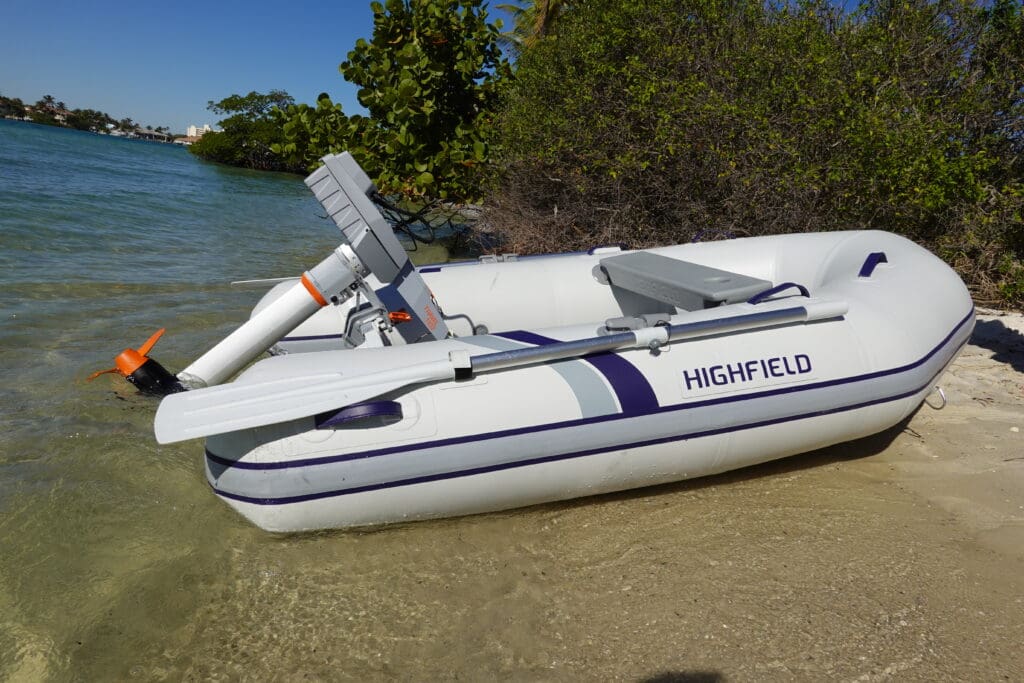

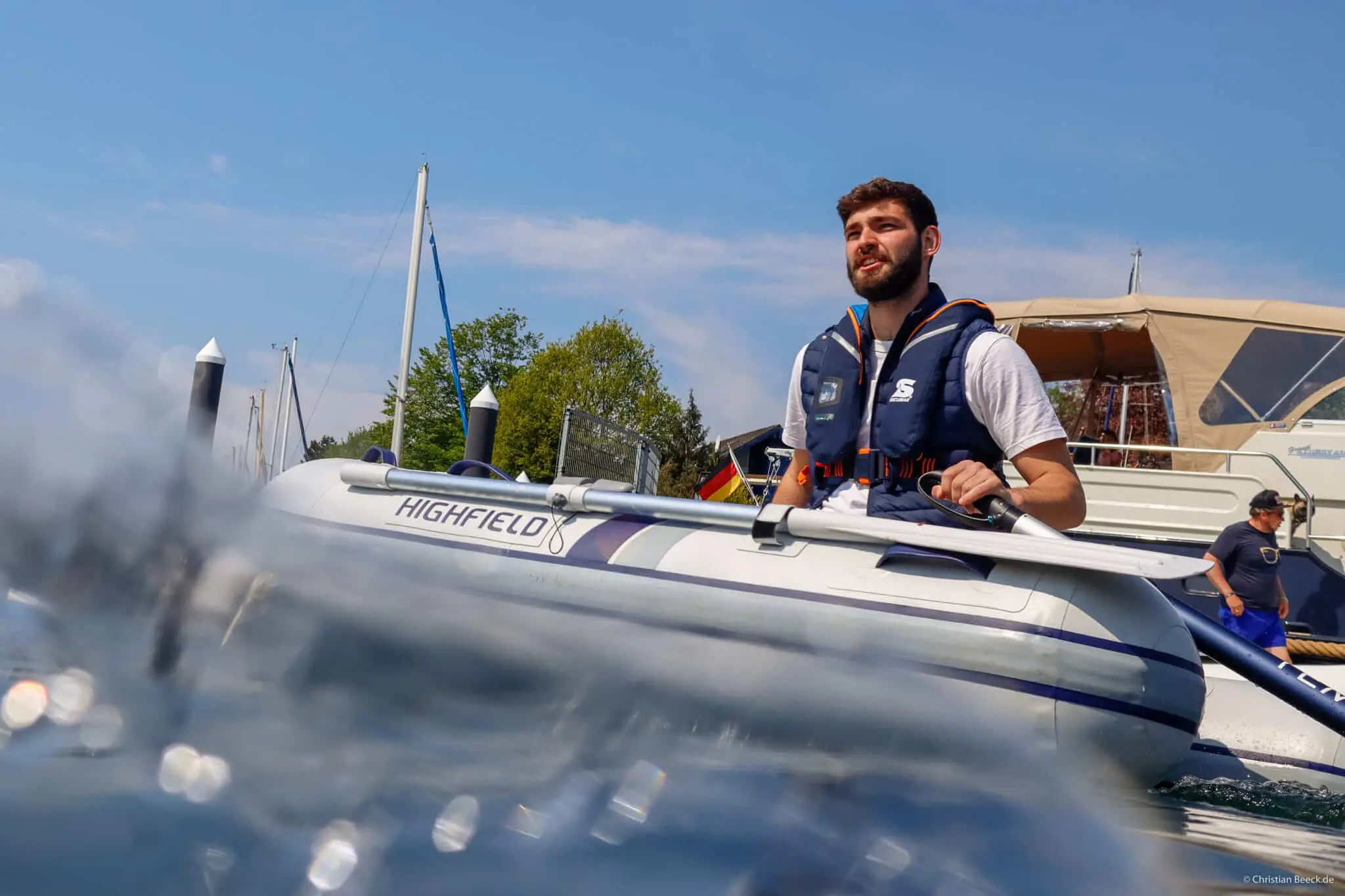

Highfield Roll Up Boats

Highfield’s innovative aluminium transom takes these inflatables to the next level. Compact and economical, these boats are ideal as ship-to-shore tender

Model – Air Mat	200KAM	230KAM	250KAM	280KAM	320KAM
Overall Length	2.00 m-6′ 7″	2.30 m-7′ 7″	2.50 m-8′ 2″	2.80 m-9′ 2″	3.20 m-10′ 6″
Internal Length	1.28 m-4′ 2″	1.54 m-5’0″	1.63 m-5′ 4″	1.94 m-6′ 4″	2.30 m-7′ 6″
Overall Width	1.37 m-4′ 6″	1.37 m-4′ 6″	1.61 m-5′ 3″	1.61 m-5′ 3″	1.55 m-5′ 1″
Internal Width	0.61 m-2′ 0″	0.61 m-2′ 0″	0.71 m-2′ 4″	0.71 m-2′ 4″	0.71 m-2′ 4″
Tube Diameter	36 cm-14″	36 cm-14″	43 cm-17″	43 cm-17″	43 cm-17″
Number of Air Chambers	3	3	3	3	3
Maximum Load	250 kg-551 lb	350 kg-772 lb	450 kg-992 lb	500 kg-1102 lb	565 kg-1246 lb
Maximum People	2	2	3	4	4+1
Boat Only Weight	24 kg-53 lb	26 kg-57 lb	30 kg-66 lb	33 kg-73 lb	36 kg-79 lb
Recommended Power	3.5 hp	4 hp	6 hp	8 hp	10 hp
Maximum Power	3.5 hp	4 hp	6 hp	10 hp	15 hp
Engine Shaft	S	S	S	S	S

Model – Aluminium Floor	200AL	230AL	250AL	280AL	320AL
Overall Length	1.99 m-6′ 6″	2.30 m-7′ 7″	2.52 m-8′ 3″	2.80 m-9′ 2″	3.20 m-10′ 6″
Internal Length	1.28 m-4′ 2″	1.57 m-5′ 2″	1.64 m-5′ 5″	1.94 m-6′ 4″	2.33 m-7′ 8″
Overall Width	1.39 m-4′ 7″	1.39 m-4′ 7″	1.58 m-5′ 2″	1.61 m-5′ 3″	1.61 m-5′ 3″
Internal Width	0.61 m-2′ 0″	0.61 m-2′ 0″	0.71 m-2′ 4″	0.71 m-2′ 4″	0.71 m-2′ 4″
Tube Diameter	36 cm-14″	36 cm-14″	43 cm-17″	43 cm-17″	43 cm-17″
Number of Air Chambers	3	3	3	3	3
Maximum Load	250 kg-551 lb	350 kg-772 lb	450 kg-992 lb	500 kg-1102 lb	565 kg-1246 lb
Maximum People	2	2	3	4	4+1
Boat Only Weight	28 kg-62 lb	31 kg-68 lb	37 kg-82 lb	42 kg-93 lb	48 kg-106 lb
Recommended Power	3.5 hp	4 hp	6 hp	10 hp	15 hp
Maximum Power	3.5 hp	4 hp	6 hp	10 hp	15 hp
Engine Shaft	S	S	S	S	S
