John Deere
Featuring a zero-tail-swing design the ultra-capable John Deere Compact Excavators allow you to get up close and personal in tight spaces.
The comfortable cab, intuitive controls, two-speed travel with automatic shifting and small size make this excavator quick and manoeuvrable, so you can easily move on to the next job and fit more into the day. Plus it’s backed by the support of your local John Deere dealer for added peace of mind.

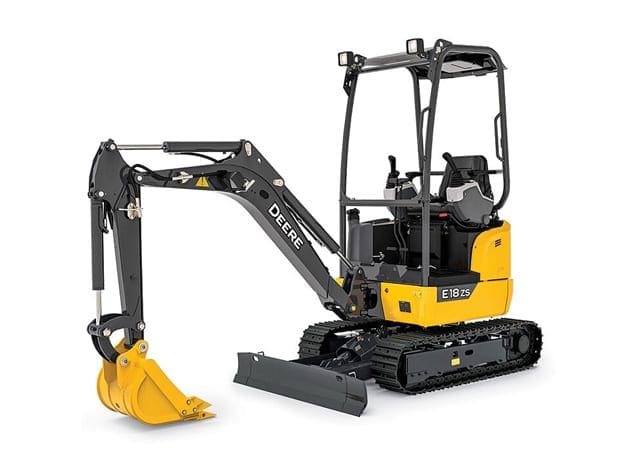

John Deere E18ZS Compact Excavator
- Engine: Yanmar, 3TNV76-SNSE 12, 1.116 litres
- Emissions Rating: EPA Tier 3/EU Stage IIIA
- Engine Power: 13.8 kW (2,200 rpm)
- Torque: 65.8 Nm (1,600 rpm)
- Hydraulics: 1x 39.6 L/min
- Drawbar Pull: 12.9 kN
- Travel Speeds:
- Low = 2.6 km/h
- High = 4.5 km/h
- Swing Speed: 9.5 rpm
- Swing Torque: 1,828 Nm
- Tool Force:
- Bucket = 18.7 kN
- Arm = 9.1 kN
- Operating Weight: 1,836 kg

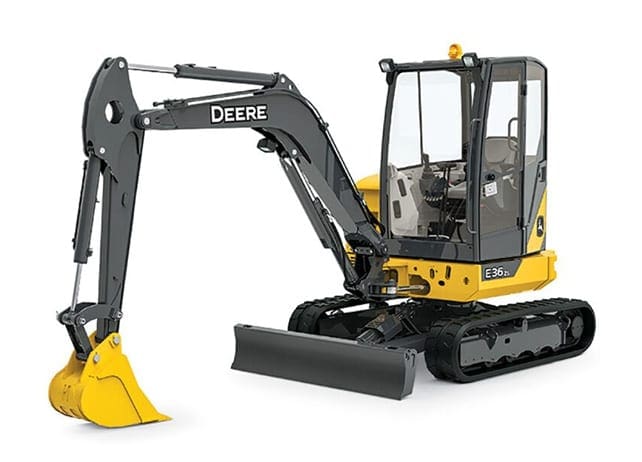

John Deere E36ZS Compact Excavator
- Engine: Yanmar, 3TNV88-BPWN, 1.642 litres
- Emissions Rating: EPA Tier 3/EU Stage IIIA
- Engine Power: 22.2 kW (2,400 rpm)
- Torque: 106.6 Nm (1,440 rpm)
- Hydraulics:
- 2x 45.5 L/min
- 1x 23.75 L/min
- 1x 11.25 L/min
- Drawbar Pull: 27.16 kN
- Travel Speeds:
- Low = 2.7 km/h
- High = 4.8 km/h
- Swing Speed: 9.5 rpm
- Swing Torque: 5,170 Nm
- Tool Force:
- Bucket = 35.0 kN
- Arm = 21.1 kN
- Operating Weight: 3,718 kg
