With a look and feel like their larger siblings, plus amped-up specs and a wider variety of options, these Compact Track Loaders have what it takes to fit the way you work, wherever you work.
These reimagined loaders rise high, pick up heavy loads, and deliver remarkable boom- and bucket-breakout forces. Plus, a low centre of gravity and sure-footed balance provide exceptional agility and stability on slopes.

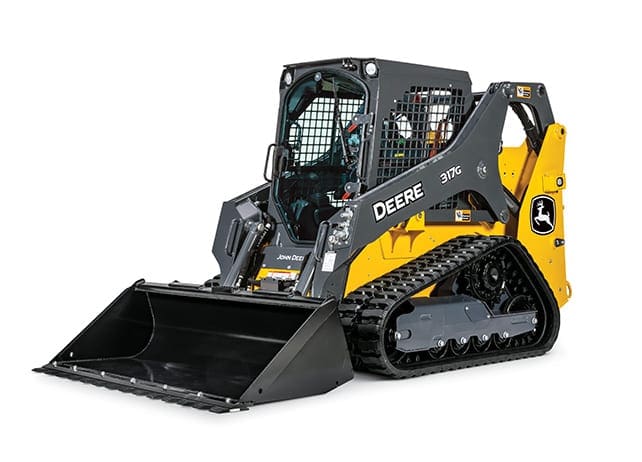

John Deere 317G Compact Track Loader
- Engine: Yanmar 4TNV86CHT, 2.1 litres
- Emissions Rating: EPA Final Tier 4/EU Stage IV
- Engine Power: 45.6 kW (2,600 rpm)
- Torque: 207 Nm (1,690 rpm)
- Maximum Travel Speed: 11.3 km/h
- Tractive Effort: 3,632 kgf
- Pump Flow: 63 L/m
- Hydraulic Horsepower: 25 kW
- Operating Weight: 3,942 kg

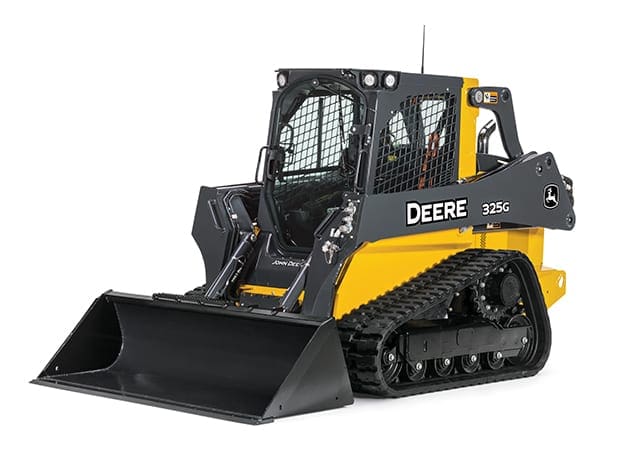

John Deere 325G Compact Track Loader
- Engine: Yanmar 4TNV98T, 3.3 litres
- Emissions Rating: EPA Interim Tier 4/EU Stage IIIA
- Engine Power: 52.7 kW (2,500 rpm)
- Torque: 284 Nm (1,800 rpm)
- Maximum Travel Speed: 9.3 km/h
- 2 Speed: (Optional)
- Low = 8.4 km/h
- High = 13.2 km/h
- Tractive Effort: 3,859 kgf
- Pump Flow: 70 (101) L/m (High Flow Option)
- Hydraulic Horsepower:
- Standard = 25 kW
- High = 40.1 kW
- Operating Weight: 4,381 kg

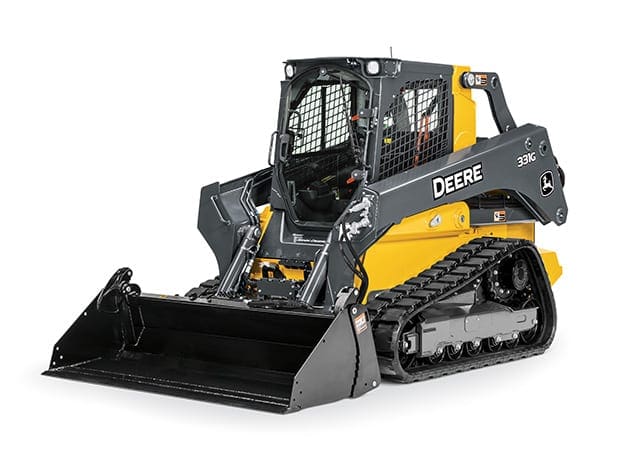

John Deere 331G Compact Track Loader
- Engine: Yanmar 4TNV94CHT, 3.1 litres
- Emissions Rating: EPA Interim Tier 4/EU Stage IIIB
- Engine Power: 66 kW (2,500 rpm)
- Torque: 382 Nm (1,700 rpm)
- 2 Speed:
- Low = 8.5 km/h
- High = 12.6 km/h
- Tractive Effort: 5,221 kgf
- Pump Flow: 80 (138) L/m (High Flow Option)
- Hydraulic Horsepower:
- Standard = 35 kW
- High = 55 kW
- Operating Weight: 5,357 kg
John Deere 333G Compact Track Loader
- Engine: Yanmar 4TNV94CHT, 3.1 litres
- Emissions Rating: EPA Interim Tier 4/EU Stage IIIB
- Engine Power: 72 kW (2,500 rpm)
- Torque: 395 Nm (1,700 rpm)
- 2 Speed:
- Low = 8.5 km/h
- High = 12.6 km/h
- Tractive Effort: 5,221 kgf
- Pump Flow: 95 (156) L/m (High Flow Option)
- Hydraulic Horsepower:
- Standard = 38 kW
- High = 62 kW
- Operating Weight: 5,448 kg
