John Deere

John Deere has an unrivalled reputation globally for dependable quality, proven reliability, outstanding durability, and strong performance. And now excavators designed, built, and backed by John Deere are available for you to put to work right here in New Zealand.

Ergonomic automotive-quality styling, 7” touch-screen monitor, and intuitive controls deliver maximum productivity all day long. Together we’ll meet even the toughest demands.

e130

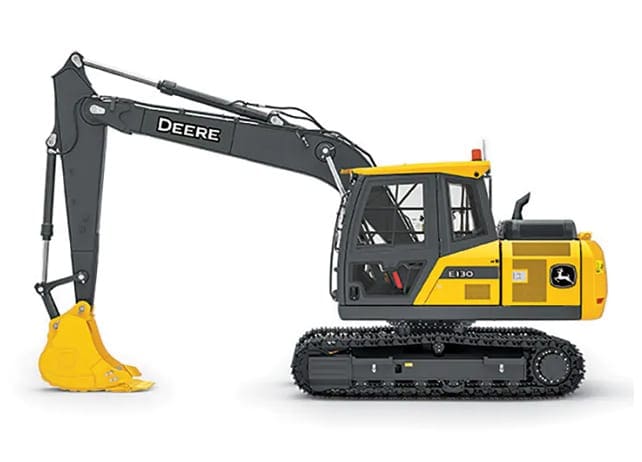

John Deere E130-II Hydraulic Excavator

  • Engine: John Deere, 4045, 4.5 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 80 kW (1,800 rpm)
  • Torque: 445 Nm (1,400 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 126 L/min
    • 1x 18 L/min
  • Drawbar Pull: 139 kN
  • Travel Speeds:
    • Low = 3.1 km/h
    • High = 5.8 km/h
  • Swing Speed: 12.5 rpm
  • Swing Torque: 36,000 Nm
  • Tool Force:
    • Bucket = 101 kN
    • Arm = 70 kN
  • Operating Weight: 13,900 kg
Enquire Now
Brochure
e140lc

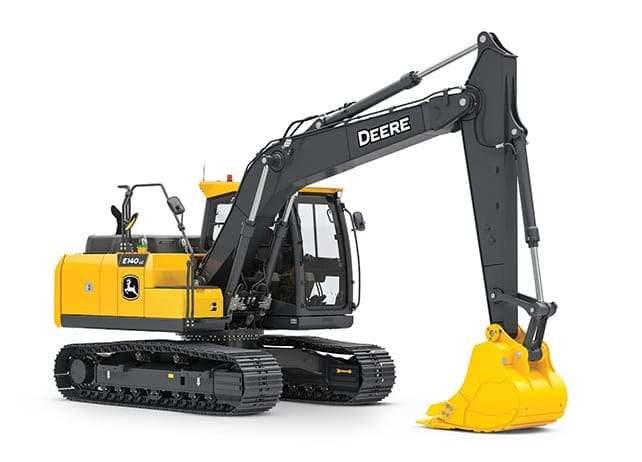

John Deere E140LC-II Hydraulic Excavator

  • Engine: John Deere, 4045, 4.5 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 85 kW (1,800 rpm)
  • Torque: 505 Nm (1,400 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 126 L/min
    • 1x 18 L/min
  • Drawbar Pull: 139 kN
  • Travel Speeds:
    • Low = 3.1 km/h
    • High = 5.8 km/h
  • Swing Speed: 12.5 rpm
  • Swing Torque: 36,000 Nm
  • Tool Force:
    • Bucket = 101 kN
    • Arm = 70 kN
  • Operating Weight: 14,000 kg
Enquire Now
Brochure
e210

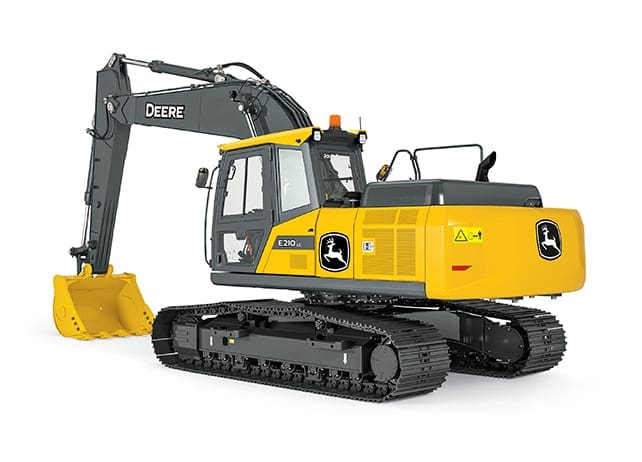

John Deere E210-II / E210LC-II Hydraulic Excavator

  • Engine: John Deere, 4045, 4.5 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 118 kW (2,000 rpm)
  • Torque: 645 Nm (1,500 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 224 L/min
    • 1x 18 L/min
  • Low Flow Auxiliary Pump: 1x 40 L/min
  • Drawbar Pull: 216 kN
  • Travel Speeds:
    • Low = 3.2 km/h
    • High = 5.5 km/h
  • Swing Speed: 12.5 rpm
  • Swing Torque: 61,000 Nm
  • Tool Force:
    • Bucket = 150 kN
    • Arm = 111 kN
  • Operating Weight: 22,600 – 23,300 kg
Enquire Now
Brochure
e230lc

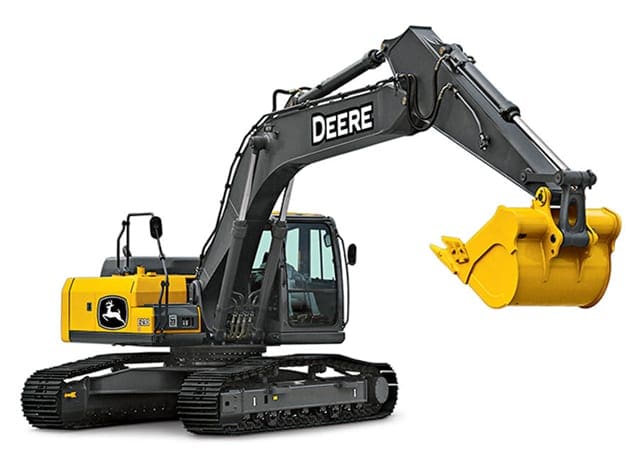

John Deere E230LC-II Hydraulic Excavator

  • Engine: John Deere, 4045, 4.5 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 118 kW (2,000 rpm)
  • Torque: 645 Nm (1,500 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 224 L/min
    • 1x 18 L/min
  • Low Flow Auxiliary Pump: 1x 40 L/min
  • Drawbar Pull: 216 kN
  • Travel Speeds:
    • Low = 3.2 km/h
    • High = 5.5 km/h
  • Swing Speed: 12.5 rpm
  • Swing Torque: 61,000 Nm
  • Tool Force:
    • Bucket = 150 kN
    • Arm = 111 kN
  • Operating Weight: 24,100 kg
Enquire Now
Brochure
e240

John Deere E240-II / E240LC-II Hydraulic Excavator

  • Engine: John Deere, 6068, 6.8 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 143 kW (2,000 rpm)
  • Torque: 934 Nm (1,400 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 234 L/min
    • 1x 18 L/min
  • Low Flow Auxiliary Pump: 1x 40 L/min
  • Drawbar Pull: 228 kN
  • Travel Speeds:
    • Low = 3.4 km/h
    • High = 5.7 km/h
  • Swing Speed: 10.8 rpm
  • Swing Torque: 69,000 Nm
  • Tool Force:
    • Bucket = 176 kN
    • Arm = 134 kN
  • Operating Weight: 24,200 – 26,000 kg
Enquire Now
Brochure
e260lc

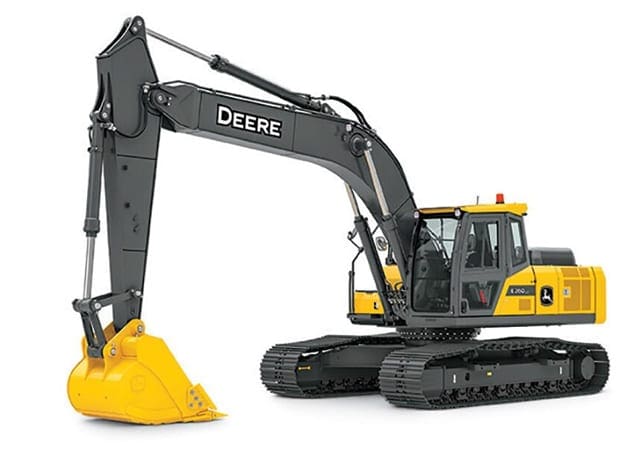

John Deere E260LC-II Hydraulic Excavator

  • Engine: John Deere, 6068, 6.8 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 144 kW (2,000 rpm)
  • Torque: 934 Nm (1,400 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 234 L/min
    • 1x 18 L/min
  • Low Flow Auxiliary Pump: 1x 40 L/min
  • Drawbar Pull: 228 kN
  • Travel Speeds:
    • Low = 3.4 km/h
    • High = 5.7 km/h
  • Swing Speed: 10.8 rpm
  • Swing Torque: 69,000 Nm
  • Tool Force:
    • Bucket = 176 kN
    • Arm = 134 kN
  • Operating Weight: 26,400 kg
Enquire Now
Brochure
e330

John Deere E300LC-II Hydraulic Excavator

  • Engine: John Deere, 6068, 6.8 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 160 kW (2,000 rpm)
  • Torque: 1,033 Nm (1,400 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 260 L/min
    • 1x 20 L/min
  • Low Flow Auxiliary Pump: 1x 44 L/min
  • Drawbar Pull: 273 kN
  • Travel Speeds:
    • Low = 3.1 km/h
    • High = 5.4 km/h
  • Swing Speed: 9.5 rpm
  • Swing Torque: 92,000 Nm
  • Tool Force:
    • Bucket = 212 kN
    • Arm = 150 kN
  • Operating Weight: 32,100 – 33,100 kg
Enquire Now
Brochure
e330

John Deere E330-II / E330LC-II Hydraulic Excavator

  • Engine: John Deere, 6090, 9.0 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 224 kW (1,800 rpm)
  • Torque: 1,317 Nm (1,400 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 288 L/min
    • 1x 27 L/min
  • Low Flow Auxiliary Pump: 1x 40 L/min
  • Drawbar Pull: 298 kN
  • Travel Speeds:
    • Low = 3.1 km/h
    • High = 5.2 km/h
  • Swing Speed: 9.5 rpm
  • Swing Torque: 111,000 Nm
  • Tool Force:
    • Bucket = 227 kN
    • Arm = 186 kN
  • Operating Weight: 34,600 – 36,500 kg
Enquire Now
Brochure
e330

John Deere E360-II Hydraulic Excavator

  • Engine: John Deere, 6090, 9.0 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 224 kW (1,800 rpm)
  • Torque: 1,317 Nm (1,400 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 288 L/min
    • 1x 27 L/min
  • Low Flow Auxiliary Pump: 1x 40 L/min
  • Drawbar Pull: 298 kN
  • Travel Speeds:
    • Low = 3.1 km/h
    • High = 5.2 km/h
  • Swing Speed: 9.5 rpm
  • Swing Torque: 111,000 Nm
  • Tool Force:
    • Bucket = 227 kN
    • Arm = 186 kN
  • Operating Weight: 35,200 – 36,500 kg
Enquire Now
Brochure
e380lc

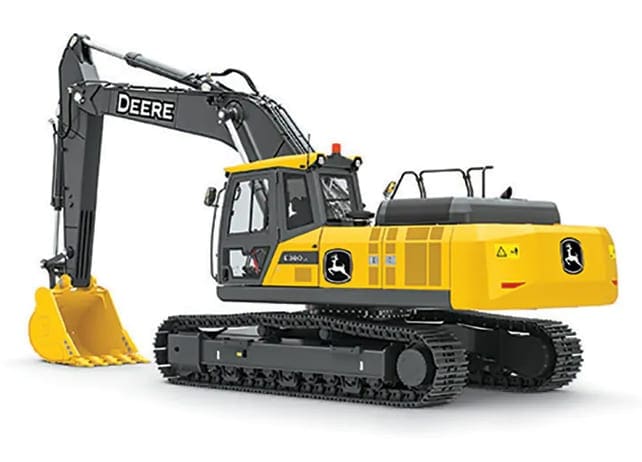

John Deere E380LC-II Hydraulic Excavator

  • Engine: John Deere, 6090, 9.0 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 233 kW (1,900 rpm)
  • Torque: 1,444 Nm (1,400 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 304 L/min
    • 1x 28.5 L/min
  • Low Flow Auxiliary Pump: 1x 42 L/min
  • Drawbar Pull: 336 kN
  • Travel Speeds:
    • Low = 2.9 km/h
    • High = 5.2 km/h
  • Swing Speed: 9.4 rpm
  • Swing Torque: 118,000 Nm
  • Tool Force:
    • Bucket = 243 kN
    • Arm = 186 kN
  • Operating Weight: 38,200 – 40,100 kg
Enquire Now
Brochure
e400

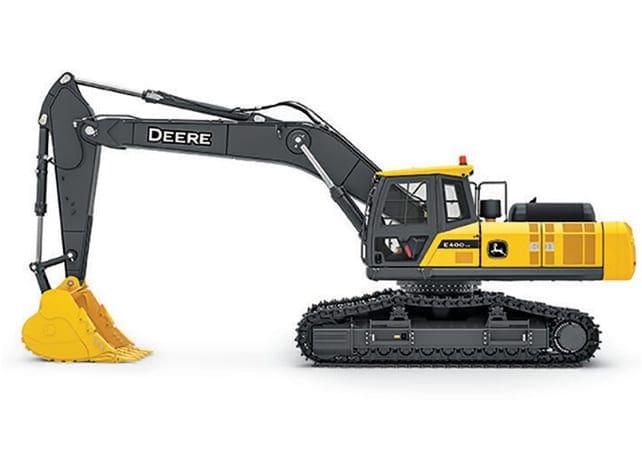

John Deere E400LC-II Hydraulic Excavator

  • Engine: John Deere, 6090, 9.0 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 233 kW (1,900 rpm)
  • Torque: 1,444 Nm (1,400 rpm)
  • Hydraulics Main/Pilot Pumps:
    • 2x 304 L/min
    • 1x 28.5 L/min
  • Low Flow Auxiliary Pump: 1x 42 L/min
  • Drawbar Pull: 336 kN
  • Travel Speeds:
    • Low = 2.9 km/h
    • High = 5.2 km/h
  • Swing Speed: 9.4 rpm
  • Swing Torque: 118,000 Nm
  • Tool Force:
    • Bucket = 243 kN
    • Arm = 186 kN
  • Operating Weight: 40,600 – 41,000 kg
Enquire Now
Brochure
