John Deere

With factory-installed shovel logger and directional feller configurations, the new Tracked Feller Bunchers are designed to handle steep-slope applications.

Industry-leading leveling technology delivers exceptional stability. Plus a “tether-ready” field kit, slope-monitoring system, and four-point seat harness make it easier to harvest logs in areas once thought to be impossible.

803m

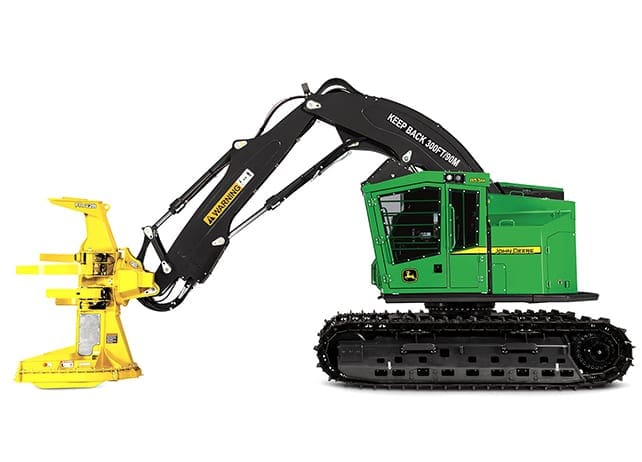

John Deere 803M Tracked Feller Bunchers

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 224 kW (1,900 rpm)
  • Torque: 1,270 (1,500 rpm)
  • Hydraulics: Standard travel system
    • Main Pump: 494 L/min
    • Saw Pump: 135 L/min
    • Attachment Pump: 135 L/min
  • Hydraulics: Dedicated travel system
    • Main Pump: 494 L/min
    • Travel Pump: 2x 190 L/min
    • Saw Pump: 135 L/min
    • Attachment Pump: 135 L/min
  • Powertrain: U6 extreme duty EXD
    • 2.8 (2.7) km/h low speed (Dedicated Travel)
    • 4.6 (4.8) km/hr high speed (Dedicated Travel)
  • Tractive Effort: 245 kN
  • Swing Speed: 7.7 (6.8) rpm (Optional)
  • Swing Torque: 55,090 (94,740) Nm (Optional)
  • Operating Weight: 29,030 kg
Enquire Now
Brochure
853m

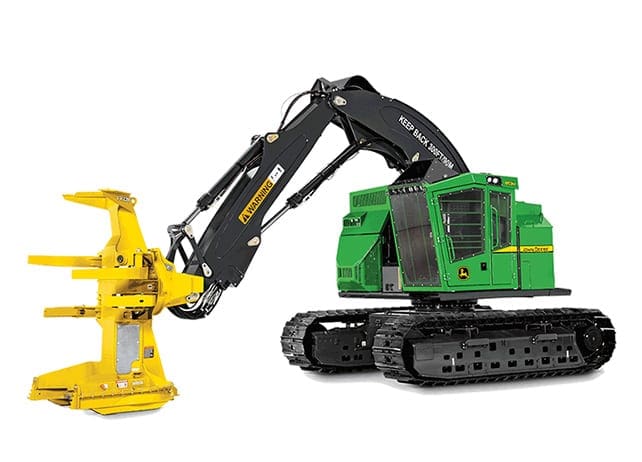

John Deere 853M Tracked Feller Buncher

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 224 kW (1,900 rpm)
  • Torque: 1,270 (1,500 rpm)
  • Hydraulics: Standard travel system
    • Main Pump: 494 L/min
    • Saw Pump: 135 L/min
    • Attachment Pump: 135 L/min
  • Hydraulics: Dedicated travel system
    • Main Pump: 494 L/min
    • Travel Pump: 2x 190 L/min
    • Saw Pump: 135 L/min
    • Attachment Pump: 135 L/min
  • Powertrain: U7 EXD
    • 2.0 (2.0) km/h low speed (Dedicated Travel)
    • 4.3 (4.1) km/hr high speed (Dedicated Travel)
  • Tractive Effort: 322 kN
  • Swing Speed: 6.8 rpm
  • Swing Torque: 94,740 Nm
  • Operating Weight: 31,600 kg
Enquire Now
Brochure
859m

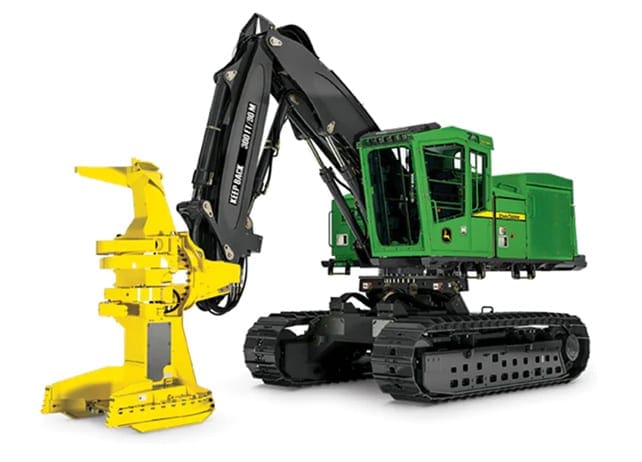

John Deere 859M Tracked Feller Buncher

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 246 kW (1,900 rpm)
  • Torque: 1,392 (1,500 rpm)
  • Hydraulics: Standard travel system
    • Main Pump: 494 L/min
    • Saw Pump: 135 L/min
    • Attachment Pump: 135 L/min
  • Hydraulics: Dedicated travel system
    • Main Pump: 494 L/min
    • Travel Pump: 2x 190 L/min
    • Saw Pump: 135 L/min
    • Attachment Pump: 135 L/min
  • Powertrain: U7L EXD
    • 1.6 (1.7) km/h low speed (Dedicated Travel)
    • 3.7 (3.7) km/hr high speed (Dedicated Travel)
  • Tractive Effort: 373 (384) kN (Dedicated Travel)
  • Swing Speed: 6.8 rpm
  • Swing Torque: 94,740 Nm
  • Operating Weight: 36,060 kg
  • Levelling Mechanism:
    • Forward = 26 deg
    • Side to Side = 7 deg
    • Rearward = 7 deg
Enquire Now
Brochure
903m

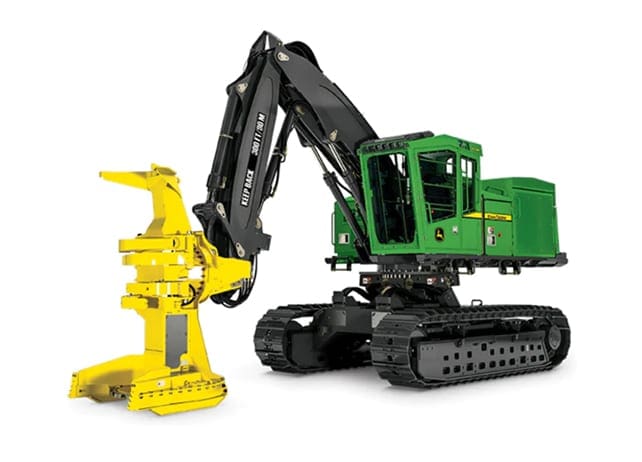

John Deere 903M Tracked Feller Buncher

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 246 kW (1,900 rpm)
  • Torque: 1,392 (1,500 rpm)
  • Hydraulics:
    • Main Pump: 532 L/min
    • Saw Pump: 114 L/min
    • Attachment Pump: 135 L/min
  • Powertrain: U7 extreme duty EXD
    • 2.1 km/h low speed
    • 4.2 km/hr high speed
  • Tractive Effort: 322 kN
  • Swing Speed: 6.7 rpm
  • Swing Torque: 80,170 Nm
  • Operating Weight: 31,330 kg
Enquire Now
Brochure
953m

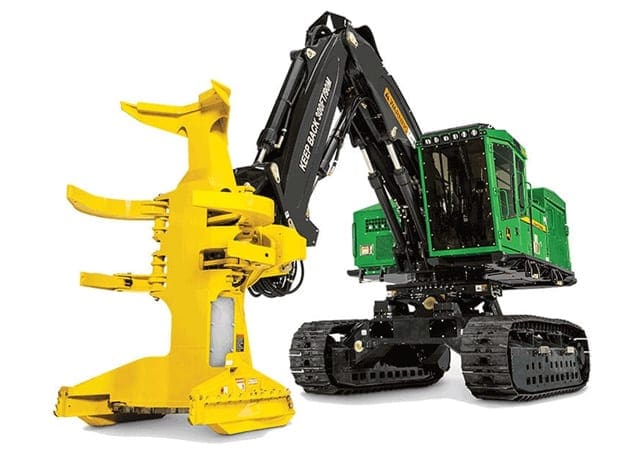

John Deere 953M Tracked Feller Buncher

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 246 kW (1,900 rpm)
  • Torque: 1,392 (1,500 rpm)
  • Hydraulics:
    • Main Pump: 532 L/min
    • Saw Pump: 114 L/min
    • Attachment Pump: 135 L/min
  • Powertrain: U7 EXD
    • 2.1 km/h low speed
    • 4.2 km/hr high speed
  • Tractive Effort: 322 kN
  • Swing Speed: 4.8 rpm
  • Swing Torque: 110,170 Nm
  • Operating Weight: 33,330 kg
Enquire Now
Brochure
959m

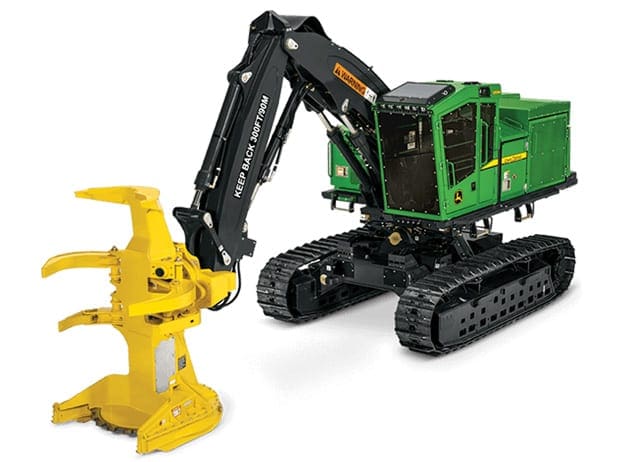

John Deere 959M Tracked Feller Buncher

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 246 kW (1,900 rpm)
  • Torque: 1,392 (1,500 rpm)
  • Hydraulics:
    • Main Pump: 532 L/min
    • Saw Pump: 114 L/min
    • Attachment Pump: 135 L/min
  • Powertrain: U7 EXD
    • 1.7 km/h low speed
    • 3.6 km/hr high speed
  • Tractive Effort: 373 kN
  • Swing Speed: 4.8 rpm
  • Swing Torque: 110,170 Nm
  • Operating Weight: 37,760 kg
  • Levelling Mechanism:
    • Forward = 26 deg
    • Side to Side = 14 deg

Rearward = 7 deg

Enquire Now
Brochure
